16 Core Multi-fiber Fiber Optic Patch Cord with 2.0mm SM SC LC Connector
Description
Pre-terminated Multi-fiber Patch Cord manufactured by ANC International Co., Limited is becoming more popular for fiber installation project. The multi-fiber patch cord is definitely an efficient and economical solution rather than on site termination or splicing. This Multi-fiber patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
ANC can offer complete custom fiber optic cable assemblies. With Pulling Eye assembly feature, it's available for fast and safe installation. Just simply lay the cable and do patching. This customized multi-fiber patch cord assembly can be used as a building backbone or horizontal distribution, and they can operate in an uncontrolled or harsh environment.
Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. The skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.
Features
2.0mm jacket for each fan-out cable diameter
Fiber core varies from 2~144 core to meet different usage;
PVC or LSZH cable optional;
SM G652D, G657A1, G657A2, G657B3 fiber or multimode fiber optional
SC, FC, LC, ST, E2000 or customized connectors optional;
Cable total length optional
Cable fan-out length on each ends optional
Low insertion loss and high return loss
3D pass rate optional;
OEM and ODM customized production
Applications
Telecommunication
Data Center
LAN, FTTX
CATV
Technical Data
Parameter for single mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | UPC≥50/APC≥60 typical |
| Operating Wavelength | nm | 1310 & 1550 |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Multi-fiber Cable Spec
| Cable Type | Fiber Count | O.D. (mm) | Weight (kg/km) | Max. Tension | Crush Resistance |
| Long/Short Term | Long/Short Term |
| (N) | (N/100mm) |
| GJFJV (Y) | 4 | 4.8±0.2 | 18 | 270/90 | 1000/300 |
| GJFJV (Y) | 6 | 5.2±0.2 | 23 | 330/110 | 1000/300 |
| GJFJV (Y) | 8 | 6.2±0.2 | 29 | 480/160 | 1000/300 |
| GJFJV (Y) | 12 | 6.8±0.3 | 37 | 600/200 | 1000/300 |
| GJFJV (Y) | 16 | 7.6±0.3 | 46 | 600/200 | 1000/300 |
| GJFJV (Y) | 24 | 8.4±0.5 | 61 | 720/240 | 1000/300 |
| GJFJV (Y) | 32 | 10.2±0.3 | 98 | 1000/330 | 1000/300 |
| GJFJV (Y) | 36 | 10.5±0.5 | 110 | 1000/330 | 1000/300 |
| GJFJV (Y) | 48 | 12.5±0.5 | 126 | 1200/520 | 1000/300 |

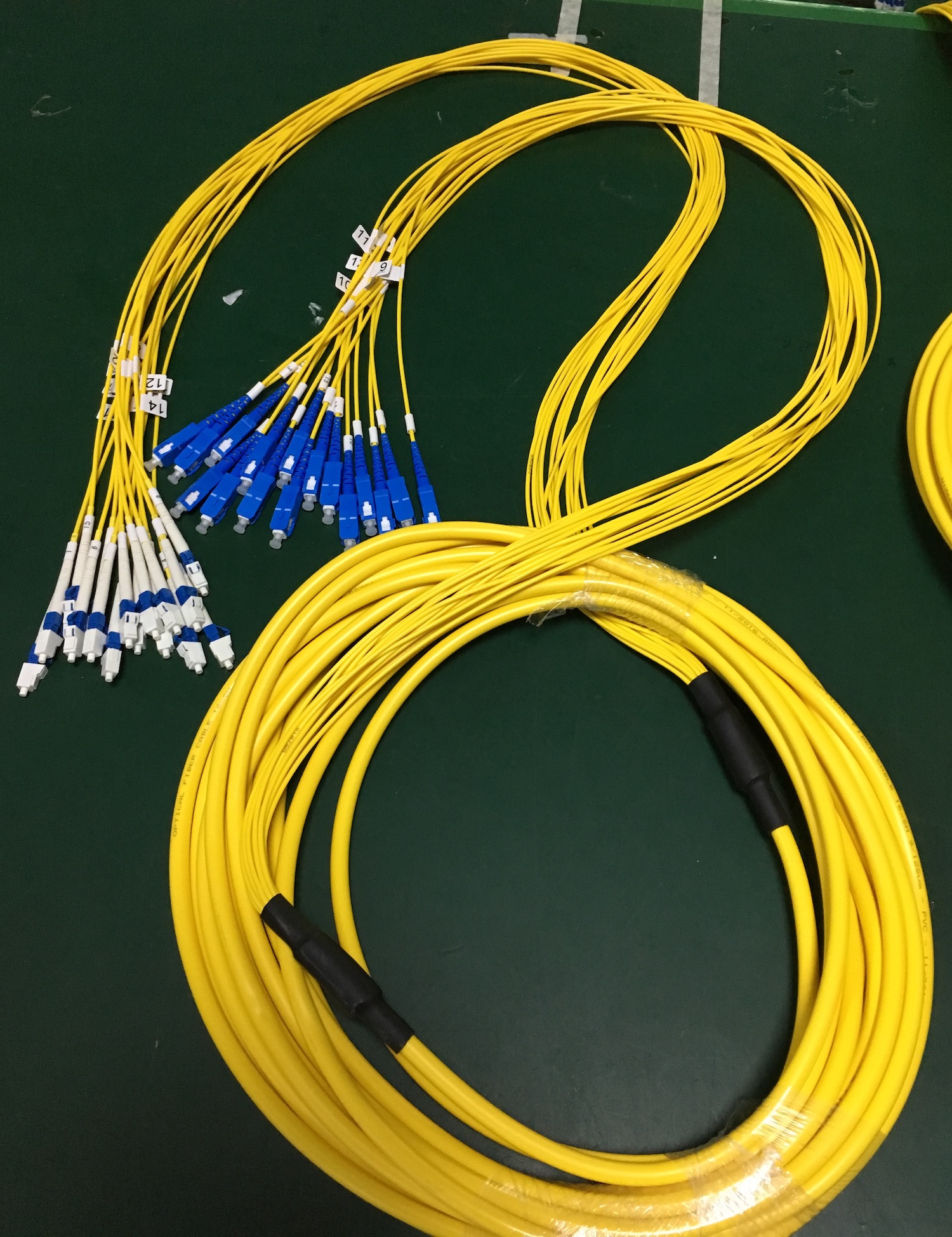

Product Pictures
