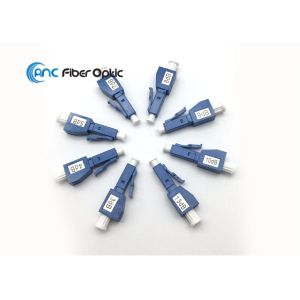

1550nm Fiber Optic Attenuator

Name: 1550nm Fiber Optic Attenuator
Brand: ANC or customized
Price: 1 USD

Quality 1550nm Fiber Optic Attenuator for sale

Brand Name : ANC or customized

Model Number : LC Male-Female Attenuator

Certification : RoHS

Place of Origin : China

MOQ : 1pc

Price : please ask

Supply Ability : 5000pcs per day

Delivery Time : 3-5 working days

Packaging Details : 1pc/bag

Attenuation Value : any dB between 1~20dB

LC thickness : Slim design 5.8mm

Housing color : Blue, Green, Beige, Aqua

Housing design : single clip or dual clip or customized

Test Wavelength : 1310nm, 1550nm

I.L. : 1-5dB,±0.5dB; 5dB-20dB, ±10%

R.L. : UPC≥50dB

Optical input power : ≤200mw

Contact Now

1dB 3dB 5dB 7dB 10dB 10 Db Attenuator SM LC PC Single Clip Or Dual Clip

Description:

1dB, 3dB, 5dB, 7dB,10dB, 15dB, 20dB SM LC/PC Male-female Fiber Optic Attenuator manufactured by ANC International Co., Limited is used to reduce signal power in fiber optic links by a fixed or variable loss. It can be mainly divided into fixed bulk head (female-female) fiber optic attenuator, fixed plug-in (female-male) fiber optic attenuator and variable fiber optic attenuator. ANC adopts mature attenuation fiber technology, and is able to provide high quality fiber optic attenuators at favorable price and fast delivery. In ANC, single mode and multimode 62.5/125 or 50/125 fiber optic attenuators are available. The attenuation range of such fiber attenuator can be from 1dB to 25dB at 1dB increment. The attenuator type has but not limit to SC/UPC, SC/APC , FC/UPC, FC/APC, LC/UPC, LC/APC, ST/PC, MU fiber optic attenuators.

Features:

Based on IEC 60869

Environmentally Stable and Reliable

Accurate Size

High Directivity

Excellent Return Loss

Application:

Telecommunication networks

CATV networks

Optical communication system

Date networks

Specification:

Type	SM	MM
Operation Wavelength	1260nm～1650nm
Tested Wavelength	1310nm/1550nm	850nm
Fiber Type	Single mode 9/125	Multimode 50/125 or 62.5/125 or OM3
Attenuation	1-5dB,±0.5dB;	1-5dB, ±0.5dB
Attenuation	5dB-20dB, ±10%	5dB-20dB, ±10%
Return Loss	UPC≥50dB; APC ≥65dB	PC≥35dB
Optical Input Power	≤200mw
Operating Temp. Range	-40℃ ～ 85℃
